VECTOR 系列焦熱電激光功率計探頭是一種熱電型激光功率計。具有高精確度和高靈敏度，低噪音，光譜范圍寬，響應速度快，操作簡便等特點。探測器每一個波長經過, 嚴格的NIST校準，廣泛應用于醫用激光，激光器生產和激光技術等精密測量之中。
特點：
? 體積小巧，方便攜帶
? 結構堅固 &n, bsp;
? 便攜式激光能量、功率測量
? 探測器經過嚴格的NIST校準
? 高靈敏度
? USB接口

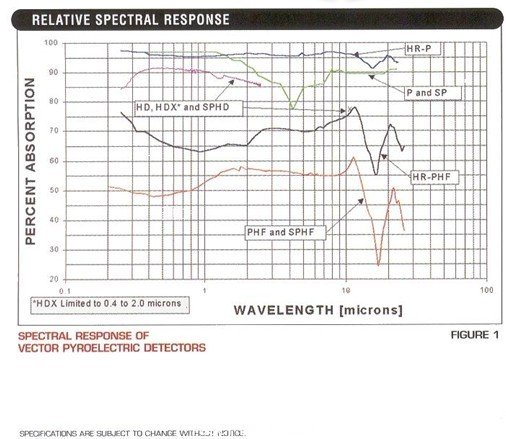

Fig.1 光譜范圍圖
主要參數：
|
型號 |
SP25 |
SPHF25 |
SPHD25 |
SP50 |
SPHF50 |
SPHD50 |
P25 |
PHF25 |
|
口徑直徑 |
25.4mm |
25.4 mm |
25.4 mm |
50.8 mm |
50.8 mm |
50.8 mm |
25.4 mm |
25.4 mm |
|
光譜范圍 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
|
最大功率 |
5 W* |
5 W* |
5 W* |
5 W* |
5 W* |
5 W* |
5 W* |
5 W* |
|
最小能量 |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
|
噪音 |
4 μJ |
4 μJ |
4 μJ |
16 μJ |
16 μJ |
16 μJ |
4 μJ |
4 μJ |
|
最大能量密度 |
See Note 25 |
See Note 25 |
See Note 26 |
See Note 25 |
See Note 25 |
See Note 26 |
See Note 25 |
See Note 25 |
|
精確度 |
5% |
5% |
8% |
5% |
5% |
8% |
5% |
5% |
|
輸出靈敏度 |
8 V/J |
8 V/J |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
8 V/J |
8 V/J |
|
最大重復頻率 |
100 pps |
400 pps |
40 pps |
50 pps |
400 pps |
20 pps |
100 pps |
400 pps |
|
最大脈沖時間 |
0.2 msec |
0.045 msec |
0.2 msec |
0.4 msec |
0.045 msec |
0.4 msec |
0.2 msec |
0.045 msec |
|
尺寸/cm |
5.8 x 5.8 x 1.4 |
5.8 x 5.8 x 1.4 |
5.8 x 5.8 x 1.4 |
7.6 x 7.6 x 1.5 |
7.6 x 7.6 x 1.5 |
6.12 x 5.77 |
6.12 x 5.77 |
6.12 x 5.77 |
|
型號 |
PHD25 |
PHDX25 |
PHDX25UV |
PHDX50 |
PHDX50UV |
P50 |
PHF50 |
PHD50 |
|
口徑直徑 |
25.4 mm
|
7 mm
|
7 mm
|
15 mm
|
15 mm
|
50.8 mm |
50.8 mm |
50.8 mm
|
|
光譜范圍 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
See Fig. 1 |
|
最大功率 |
5 W* |
5 W* |
5 W* |
10 W* |
10 W* |
10W* |
10 W* |
10 W* |
|
最小能量 |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
7%** |
|
噪音 |
4 μJ |
4 μJ |
4 μJ |
16 μJ |
16 μJ |
16 μJ |
16 μJ |
16 μJ |
|
最大能量密度 |
See Note 26 |
See Note 27 |
See Note 28 |
See Note 27 |
See Note 28 |
See Note 25 |
See Note 25 |
See Note 26 |
|
精確度 |
8%
|
8% |
8% |
8% |
8% |
5%
|
5%
|
8%
|
|
輸出靈敏度 |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
2 V/J |
|
最大重復頻率 |
40 pps |
40 pps |
40 pps |
20 pps |
20 pps |
50 pps |
400 pps |
20 pps
|
|
最大脈沖時間 |
0.2 msec |
0.2 msec |
0.2 msec |
0.4 msec |
0.4 msec |
0.4 msec |
0.045 msec |
0.4 msec |
|
尺寸/cm |
6.12 x 5.77 |
8.76 x 9.88 |
8.76 x 9.88 |
8.76 x 9.88 |
8.76 x 9.88 |
6.12 x 5.77 |
6.12 x 5.77 |
6.12 x 5.77 |
備注：*全輻照傳感器 **中心吸收 ***選擇的范圍
#p#副標題#e#
NOTE
|
Note 1 |
AC2501, AC5001 30W/cm2@1064nm, 23W/cm2@532nm, 8.5W/cm2@355nm, 175mW/cm2@266nm |
|
Note 2 |
ACX2501, ACX5001 Note 1 specs x 8 for 400nm to 1.2µm |
|
Note 3 |
AC25UV, AC50UV, 384UV5, 388UV5, UC150UV 50W/cm2@355nm |
|
Note 4 |
AC2504, AC5004 35W/cm2@1064nm |
|
Note 5 |
AC2501, AC5001 100GW/cm2@1064nm, 78GW/cm2@532nm, 29GW/cm2@355nm, 580MW/cm2@266nm |
|
Note 6 |
AC25UV, AC50UV, 384UV5, 388UV5, UC150UV Repetitive pulses: 101MW/cm2@355nm; Single pulses: 3.5GW/cm2@355nm |
|
Note 7 |
AC2504, AC5004 125GW/cm2@1064nm |
|
Note 8 |
AC2500, AC5000, 360401, 360801, UC150 Max J/cm2 = 1,000 x (pulse width)1/2 to a max of 200J/cm2 |
|
Note 9 |
AC250FX, AC50FX Max J/cm2 = 4,950 x (pulse width)1/2 to a max of 12.3J/cm2 |
|
Note 10 |
ACX25FX, ACX50FX Max J/cm2 = 39,600 x (pulse width)1/2 to a max of 36.9J/cm2 |
|
Note 11 |
AC2501, AC5001 Repetitive pulses: 4.1J/cm2@1064nm, 3.2J/cm2@532nm, 1.2J/cm2@355nm, 24mJ/cm2@266nm Single pulses: 8J/cm2@1064nm, 6.2J/cm2@532nm, 2.3J/cm2@355nm, 46mJ/cm2@266nm |
|
Note 12 |
ACX2501, ACX5001 Note 11 specs x 8 for 400nm to 1.2µm |
|
Note 13 |
AC25UV, AC50UV, 384UV5, 388UV5, UC150UV Repetitive pulses: 1.1J/cm2@355nm; Single pulses: 40J/cm2@355nm |
|
Note 14 |
AC25004, AC5004 Repetitive pulses: 4.8J/cm2@1064nm; Single pulses: 10J/cm2@1064nm |
|
Note 15 |
AC25FX, AC50FX Max p.p.d.: 70MW/cm2@1064nm pulse |
|
Note 16 |
ACX25FX, ACX50FX Max p.p.d.: 560MW/cm2@1064nm pulse |
|
Note 17 |
380401 27W/cm2@1064nm, 21W/cm2@532nm, 7.7W/cm2@355nm, 158mW/cm2@266nm |
|
Note 18 |
380801 13.5W/cm2@1064nm, 10.5W/cm2@532nm, 3.85W/cm2@355nm, 79mW/cm2@266nm |
|
Note 19 |
380401 90GW/cm2@1064nm, 71GW/cm2@532nm, 27GW/cm2@355nm, 530MW/cm2@266nm |
|
Note 20 |
380801 45GW/cm2@1064nm, 35.5GW/cm2@532nm, 13.5GW/cm2@355nm, 265MW/cm2@266nm |
|
Note 21 |
380401 Repetitive pulses: 3.7J/cm2@1064nm, 2.9J/cm2@532nm, 1J/cm2@355nm, 20mJ/cm2@266nm Single pulses: 7J/cm2@1064nm, 5.6J/cm2@532nm, 2.1J/cm2@355nm, 41mJ/cm2@266nm |
|
Note 22 |
380801 Repetitive pulses: 1.85J/cm2@1064nm, 1.45J/cm2@532nm, 0.5J/cm2@355nm, 10mJ/cm2@266nm Single pulses: 3.5J/cm2@1064nm, 2.8J/cm2@532nm, 1.05J/cm2@355nm, 20.5mJ/cm2@266nm |
|
Note 23 |
AC25HD, AC50HD, UC150HD, UC150HD40 Max J/cm_ = 4,500 x (pulse width)1/2 to a max of 14J/cm2 |
|
Note 24 |
ACX25HD, ACX50HD Max J/cm2 = 36,000 x (pulse width)1/2 to a max of 42.5J/cm2 |
|
Note 25 |
SP25, SPHF25, SP50, SPHF50, P25, PHF25, P50, PHF50, PHF02, PHF05, PHF09, P05, P09 Max J/cm2 = 316 x (pulse width)1/2 |
|
Note 26 |
SPHD25, SPHD50, PHD25, PHD50 Max J/cm2 = 4,500 x (pulse width)1/2 to a max of 1.4J/cm2 |
|
Note 27 |
PHDX25, PHDX50 Max J/cm2 = 36,000 x (pulse width)1/2to a max of 12.6J/cm2 |
|
Note 28 |
PHDX25UV, PHDX50UV Max J/cm2 = 18,000 x (pulse width)1/2to a max of 5.6J/cm2 |
轉載請注明出處。
